Measuring 25 × 25 × 14 mm and weighing only 24 g , the miniature indoor CCTV camera stands out for its compact design, ideal for discreet indoor installations.
Image sensor 1/3" Sony© 960H Super HAD CCD II
Nextchip NVP2040 DSP
600 line resolution
Video output 1 Vp-p 75 Ω / BNC
Minimum illumination 0.3 Lux / F2.0
Signal-to-noise ratio > 48 dB
3.7 mm (79º) Pinhole Optic
DC 12V / 150mA power supply
Operating temperature -10º C ~ +50º C
Dimensions 25 (H) x 25 (W) x 14 (D) mm
Weight 24 g

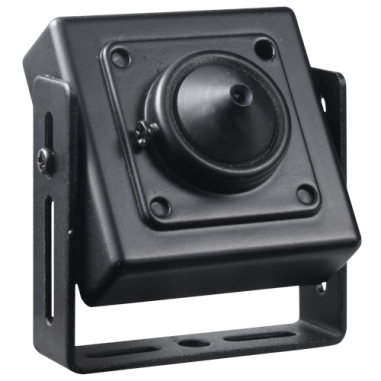

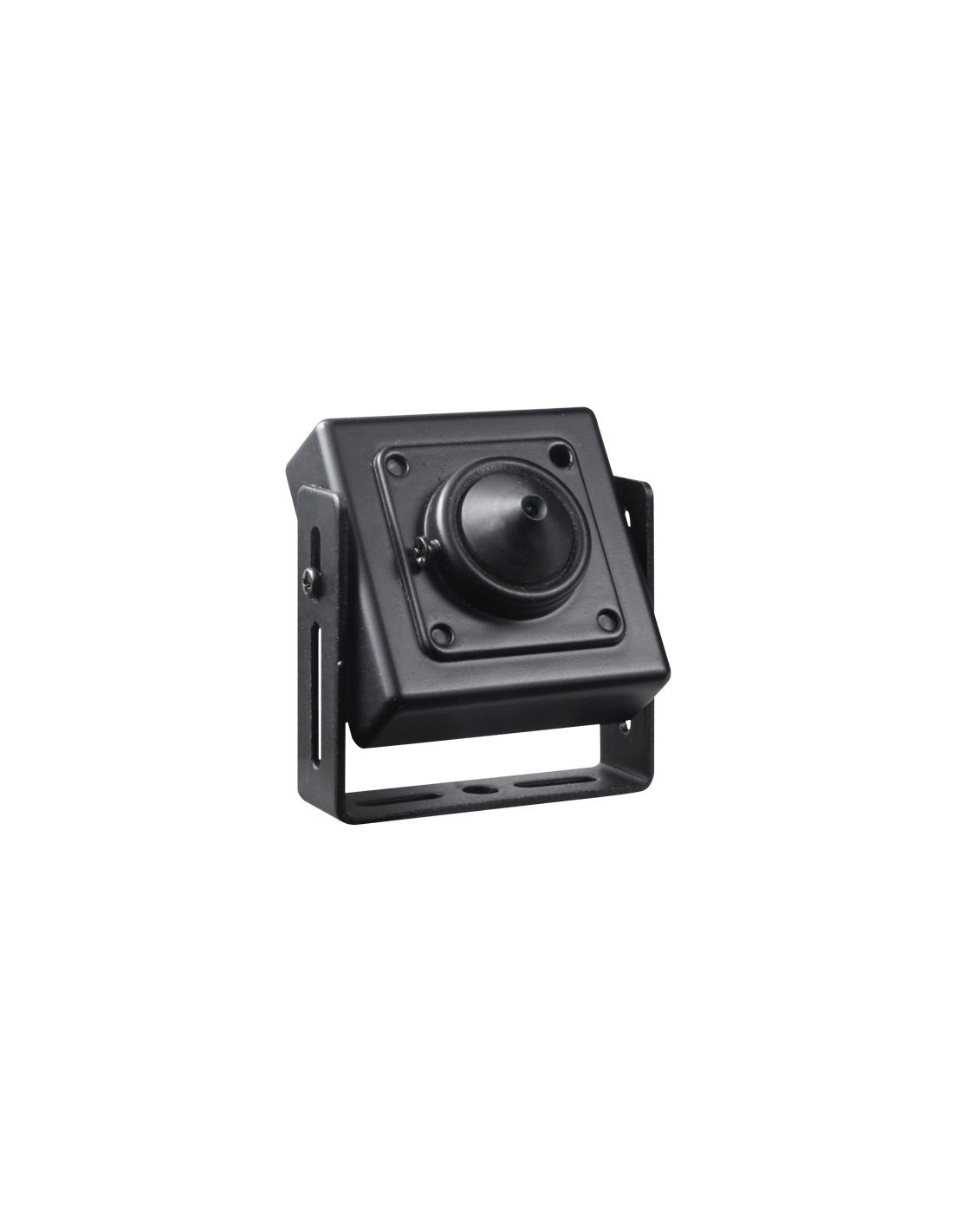

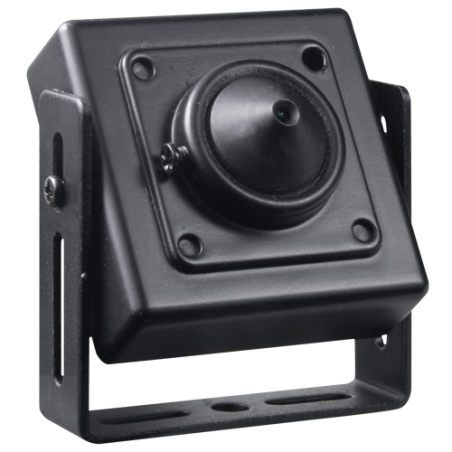

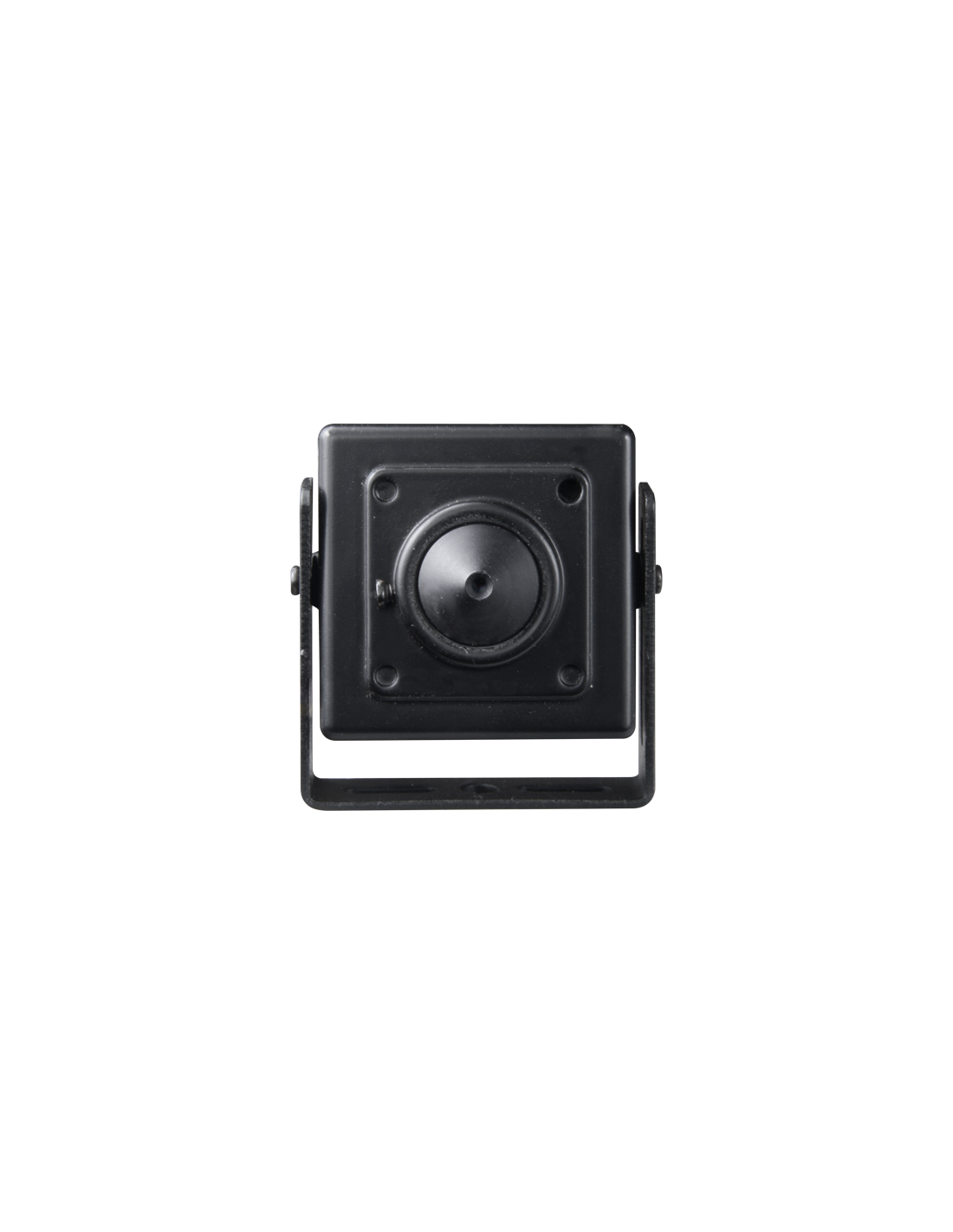

The MC221J wired mini security camera is a compact and discreet solution designed for video surveillance applications where a small, easy-to-install device is required.minicámara vigilancia cableada seguridad Thanks to its small size and functional design, this pinhole mini security camera is ideal for indoor spaces where monitoring is needed without taking up much room.

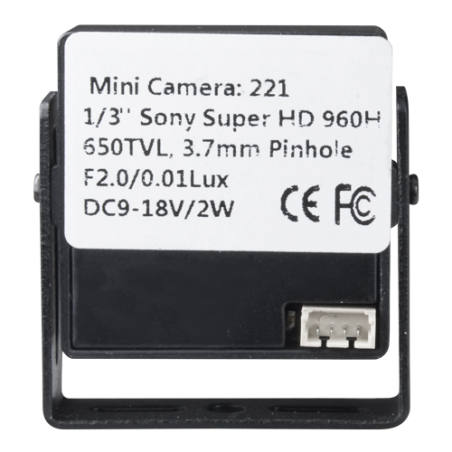

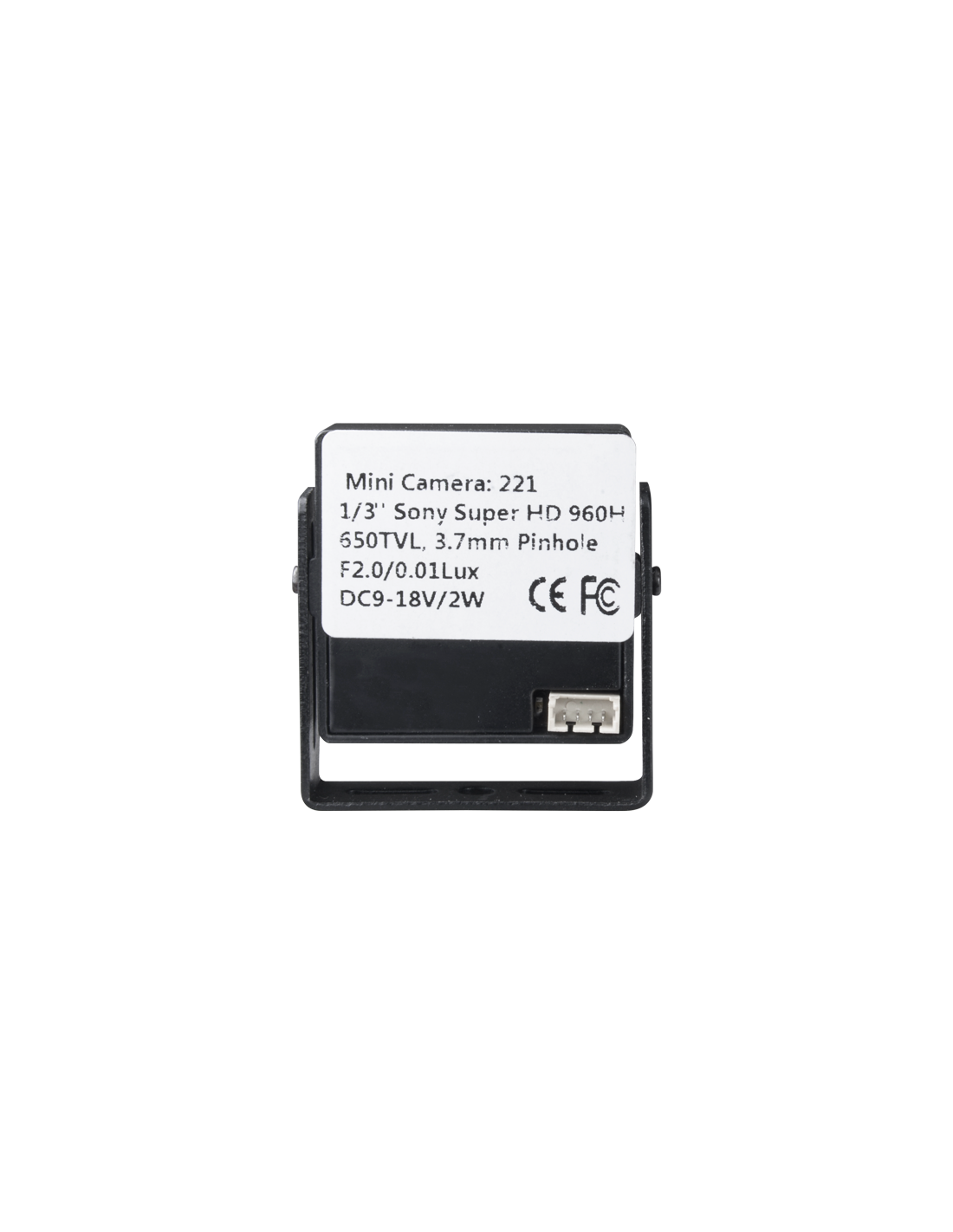

Equipped with a 1/3" Sony© 960H Super HAD CCD II image sensor and Nextchip NVP2040 DSP processor , the miniature indoor CCTV camera offers a resolution of 600 lines , providing clear and stable images for security tasks.

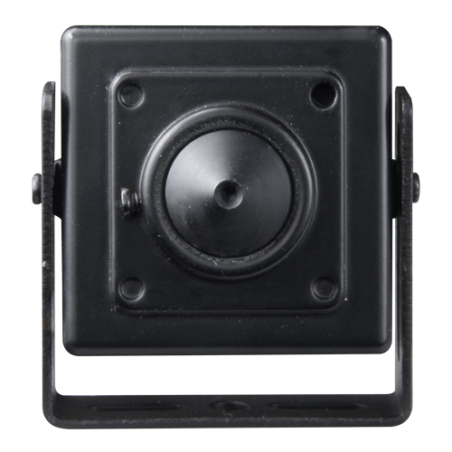

The camera incorporates a 3.7mm pinhole lens , providing an approximate 79° viewing angle ,minicámara vigilancia cableada seguridad allowing for precise coverage of key areas. Furthermore, the wired security mini-camera offers a minimum illumination of 0.3 Lux , enabling image capture even in low-light conditions.
This wired mini security camera features a minicámara vigilancia cableada seguridad BNC video output (1 Vp-p / 75 Ω) , facilitating its integration with professional security recording systems and monitors. It also includes a built-in bracket , simplifying installation on various surfaces.
Thanks to its 12V DC power supply with a consumption of 150 mA , minicámara vigilancia cableada seguridad this mini pinhole security camera is efficient and compatible with most analog CCTV systems.
